CNC milling · Hamilton, Scotland
CNC milling, up to 700 mm cubed.
Five CNC machining centres in one Hamilton facility, three of them horizontal machining centres with pallets. Milled components up to 700 × 700 × 700 mm and 750 kg, in ferrous and non-ferrous materials. The largest listed axis travel is 1,050 × 900 × 1,000 mm.
What it is
Prismatic parts, cut from the solid.
In CNC milling a rotating cutter removes material from a fixed component, along axes controlled by computer. It is how blocks, housings, plates, brackets and other prismatic parts are made.
On a horizontal machining centre the spindle lies on its side and the component is clamped to a square pallet: 630 × 630 mm on the Kitamura H630 and the DN Solutions NHP 6300, and 500 × 500 mm on the Kitamura H500i. The other two machining centres have tables.
All CNC machinery is DNC-linked and programmed offline in EdgeCam multi-axis manufacturing software. The quality management system behind the work is certified to ISO 9001:2015 by BSI under certificate number FM 11369.
Our CNC machining centres
Listed travel of each machining centre.
Travel is as HOB lists it, in millimetres. Listed capacity is indicative: the drawing decides, and we confirm on quotation.
| Machine | Type | Travel X / Y / Z, mm | Table or pallet, mm |
|---|---|---|---|
| Okuma Milac | Machining centre | 1000 × 550 × 400 | 1300 × 500 table |
| Mori Seiki Duramill | Machining centre | 800 × 400 × 300 | 1000 × 400 table |
| Kitamura H630 | Horizontal | 1016 × 813 × 765 | 630 × 630 pallet |
| Kitamura H500i | Horizontal | 800 × 610 × 610 | 500 × 500 pallet |
| DN Solutions NHP 6300 | Horizontal | 1050 × 900 × 1000 | 630 × 630 pallet |
On the shop floor

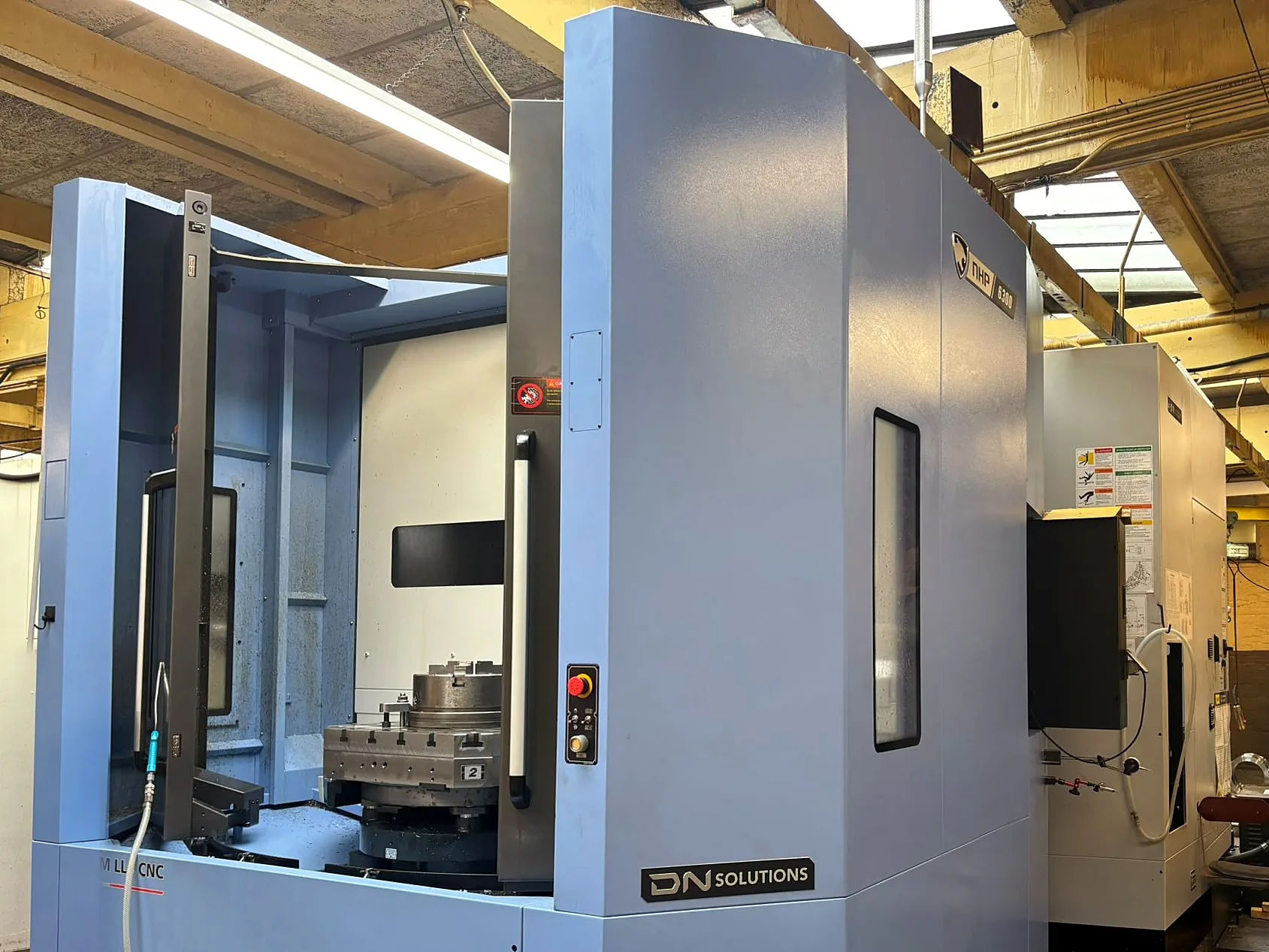

The DN Solutions NHP 6300.
The largest of our machining centres: a horizontal machine with a 630 × 630 pallet and a listed travel of 1,050 × 900 × 1,000 mm.
The photograph shows it with the door open. For a milled part that may suit it, send us the drawing.
, open full size
The work envelope
What fits, drawn to scale.
The published work envelope for milled components is 700 × 700 × 700 mm and 750 kg. A few machines list more travel than that; the part check says "talk to us" for sizes in between.
milled max 750 kg
Part check
Will your part fit our machines?
Enter the finished size. We compare it with the listed capacity of each CNC turning and machining centre on our floor. Indicative only: the drawing decides, and we confirm on quotation.
Our CNC workspace takes turned components up to Ø700 mm and milled components up to 700 × 700 × 700 mm, up to 750 kg. Each machine's listed capacity is on the plant & facilities page.
Around the machining centres
Everything else a milled part may need.
Conventional machining
Conventional milling and turning machines.
Jig boring
Two jig borers.
Grinding
Universal and surface grinders.
Inspection
An inspection area with a full range of measuring equipment, including a CMM.
