CNC turning · Hamilton, Scotland
CNC turning, up to Ø700 mm.
Eight CNC turning centres in one Hamilton facility. Turned components up to Ø700 mm and 750 kg, in ferrous and non-ferrous materials, with listed capacities up to 28 in (711 mm) in diameter and 59 in (1,499 mm) in length.
What it is
Round parts, made from the drawing.
In CNC turning the component is held in a chuck and rotated, while computer-controlled cutting tools remove material to the drawing. It is how shafts, bushes, flanges, rings and other round parts are made.
H.O.B. turns to customers' drawings as a subcontractor. All CNC machinery is DNC-linked and programmed offline in EdgeCam multi-axis manufacturing software, and finished parts are checked in the inspection area, which includes a CMM. The quality management system behind it is certified to ISO 9001:2015 by BSI under certificate number FM 11369.
Not sure whether a part fits? Enter its size in the part check below, or send us the drawing.
, open full size
, open full size
, open full size
Our CNC turning centres
Listed capacity of each lathe.
Capacities are as HOB lists them, in inches, with the metric figure beside each. Listed capacity is indicative: the drawing decides, and we confirm on quotation.
| Machine | Capacity, diameter | Capacity, length |
|---|---|---|
| Puma 480 | 28 in · 711 mm | 36 in · 914 mm |

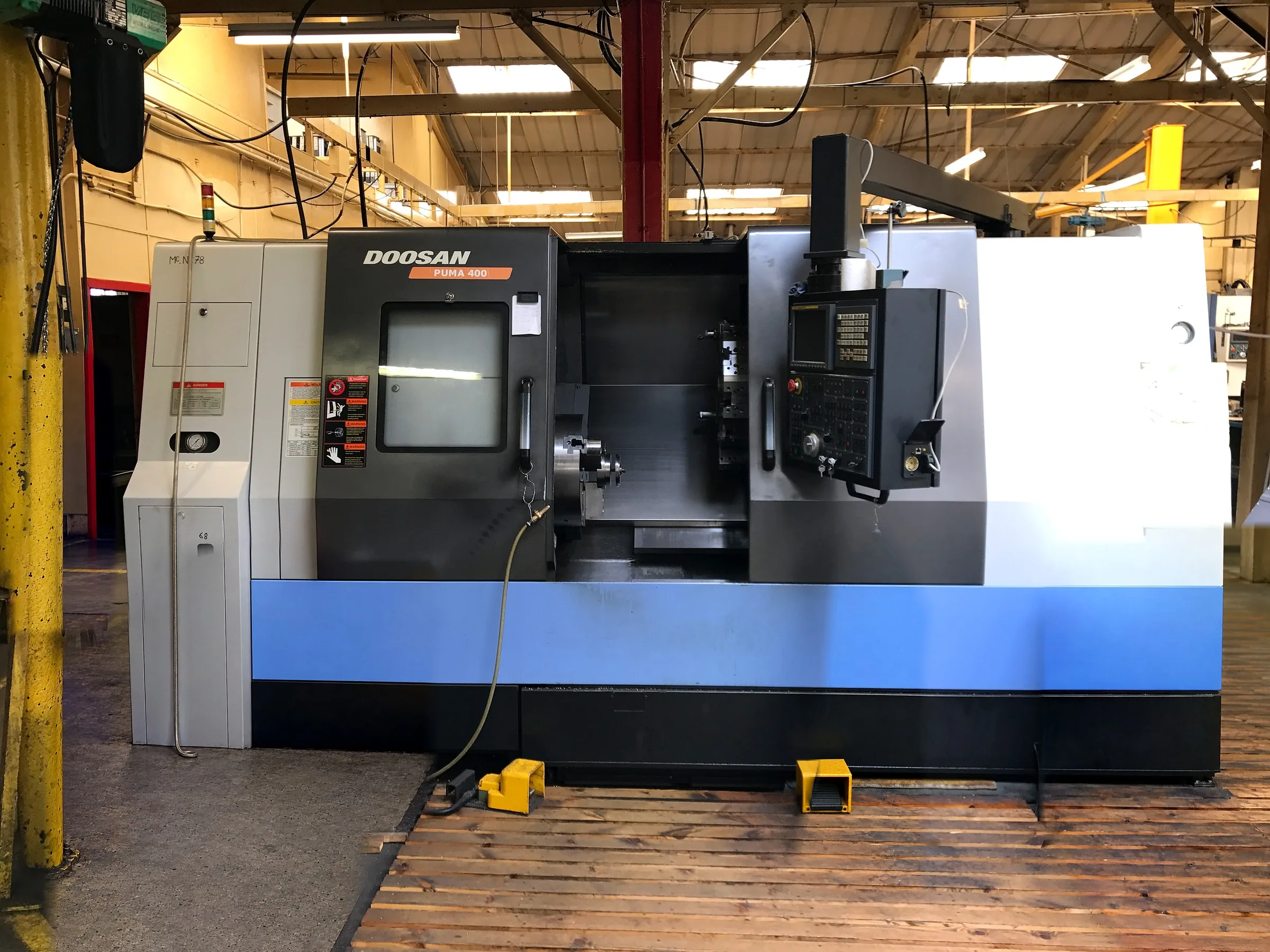

| Puma 400 | 20 in · 508 mm | 39 in · 991 mm |

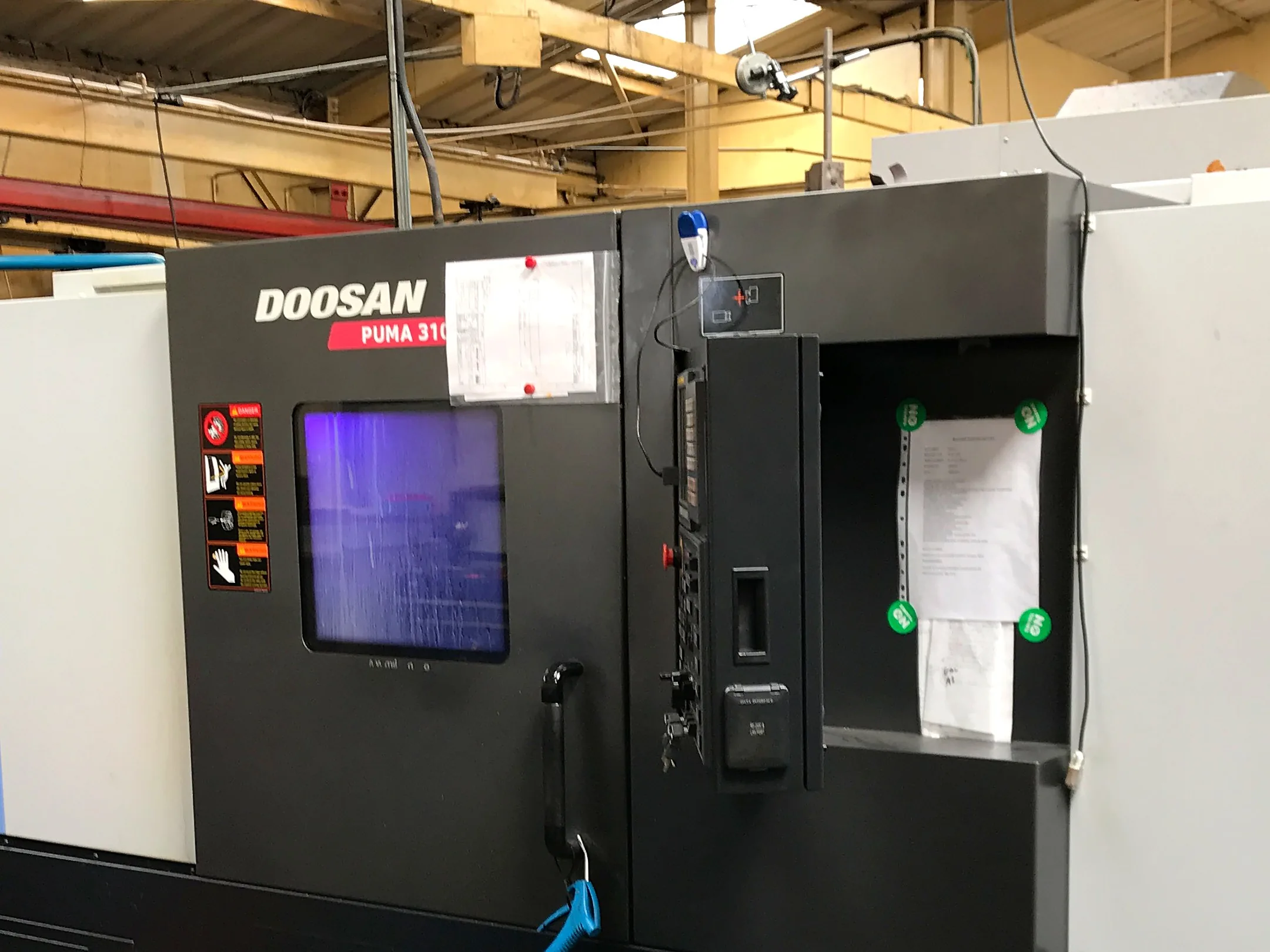

| Puma 3100 | 18 in · 457 mm | 39 in · 991 mm |
| Dainichi F35 | 10 in · 254 mm | 39 in · 991 mm |
| Mori-Seiki SL65 | 28 in · 711 mm | 36 in · 914 mm |
| Puma 500 | 28 in · 711 mm | 54 in · 1,372 mm |
| Puma 2600 | 12 in · 305 mm | 39 in · 991 mm |

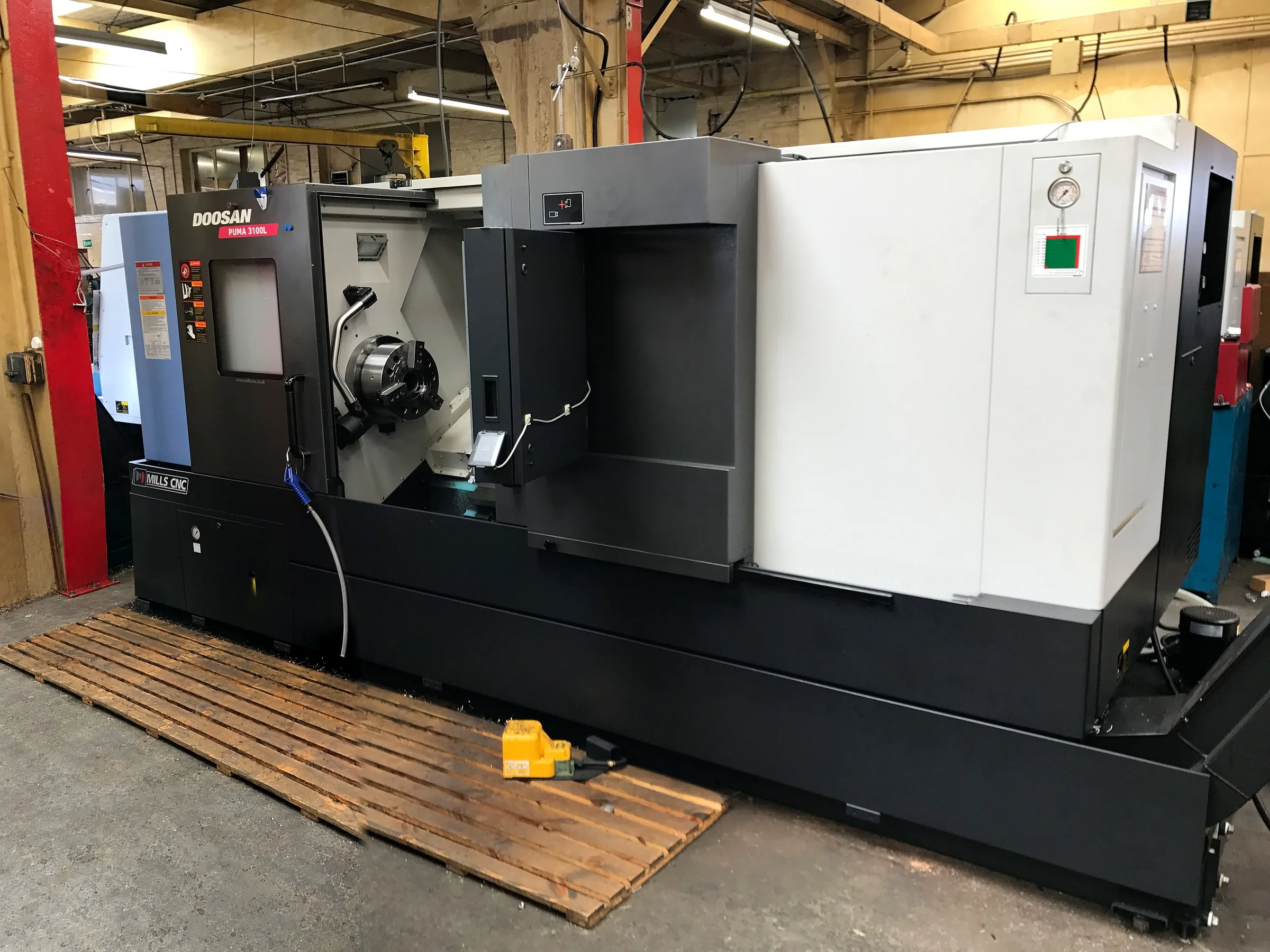

| Puma 3100L | 18 in · 457 mm | 59 in · 1,499 mm |
Part check
Will your part fit our machines?
Enter the finished size. We compare it with the listed capacity of each CNC turning and machining centre on our floor. Indicative only: the drawing decides, and we confirm on quotation.
Our CNC workspace takes turned components up to Ø700 mm and milled components up to 700 × 700 × 700 mm, up to 750 kg. Each machine's listed capacity is on the plant & facilities page.
Around the lathes
Everything else a turned part may need.
Conventional machining
Conventional milling and turning machines.
Grinding
Universal and surface grinders.
Jig boring
Two jig borers.
Inspection
An inspection area with a full range of measuring equipment, including a CMM.
